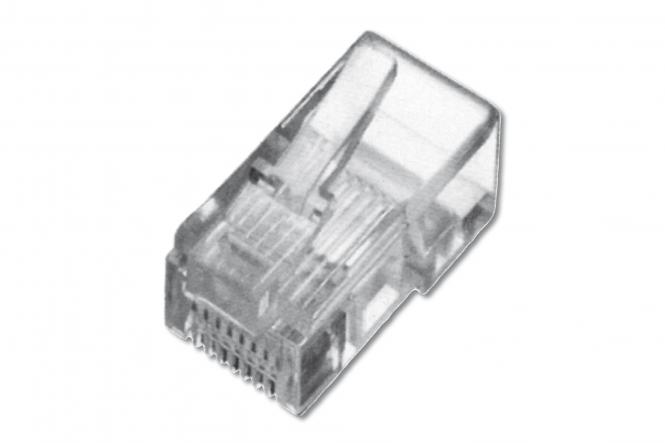

Modular plug for round cable, unshielded, 100 pcs.

DIGITUS Modular plug for round cable, unshielded, 100 pcs.

Product number: DN-MO-8-8-SR
EAN: 4016032499374

Modular Plug, for stranded Round Cable, 8P8C unshielded, 100 pcs. packr

Modular plug, 8P8C, unshielded for solid conductor round cable two-piece plug

More product information

Description

Technical details

  • Performance characteristics: CAT 5e, 10/100Base-T, 1GBase-T
  • Areas of application: Patch cable assembly
  • Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
  • General properties:
  • UL-certified
  • Technical features:
  • Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Material plug housing: polycarbonate, natural
  • Plug contact: Phosphor bronze, nickel 0.6 μ gold-plated
  • Flammability: UL 94V-2
  • Physical properties:
  • Insertion force: ≤ 30 N
  • Diameter copper conductor: AWG (27/7 ... 24/7)
  • Operating temperature: -40 °C to +80 °C
  • Current carrying capacity: 1A -1.5A at 50 °C

Attributes

  • Category: CAT 5e

Downloads and Certificates

Datasheet

Logistics

  Number
(pcs) 		Weight
(kg) 		Depth
(cm) 		Width
(cm) 		Height
(cm) 		cm³
Packaging Unit Carton 100 16,90 46,50 35,00 30,00 48.825,00
Packaging Unit Inside 1 0,17 0,00 0,00 0,00 0
Packaging Unit Single 1 0,17 0,00 0,00 0,00 0
Customs tariff number: 85366990
